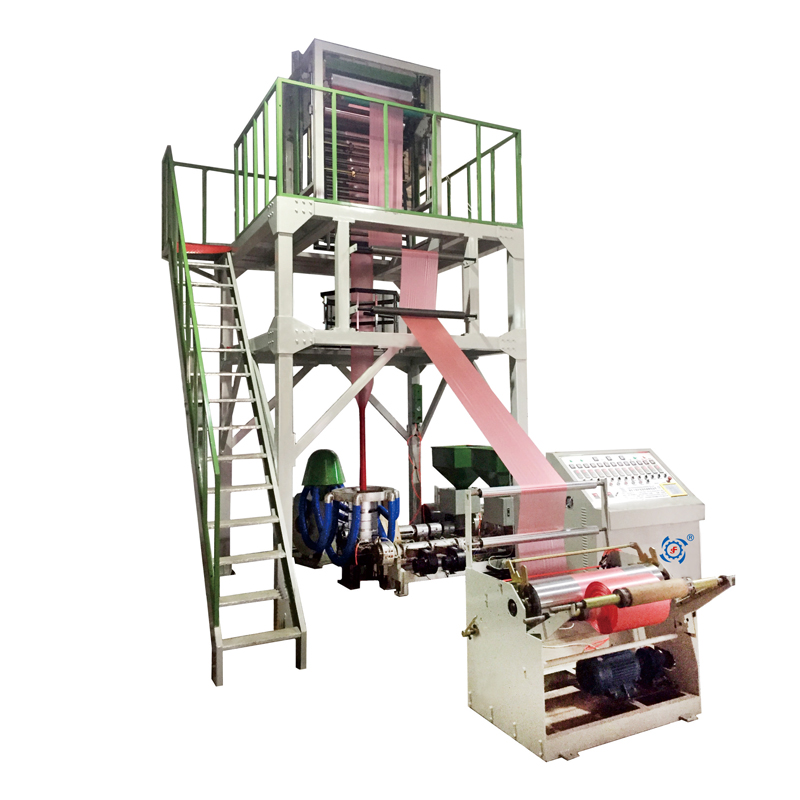

SJ-A系列ABA吹膜机


SJ-A系列ABA吹膜机

SJ-A Series ABA Film Blowing Machine

性能及特点(Performance and Characteristics

该机通过两台挤出机将两种相同或不同的物料塑化挤入共挤复合机头,生产出经共挤成型号的复合薄膜,从而大大提高了薄膜的物理性能,增加其强度,使薄膜具有良好的阻隔性、气密性。

该机采用先进的连续旋转机头,产品平整,均匀度好,保证了包装机,印刷机等后续工序设备对薄膜的质量要求,适合生产复合珠光膜、复合液体包装膜、绝缘膜、多功能农用薄膜等。其运用范围正在逐步扩大,是塑料制品开发方向。

The machine plasticates two identical or different raw substances by two extrudes and extrudes them into the complex machine head,then produces the co-extruding molded complex film,By this way,it make possible to enhance the film’s physical performance,rigidity,good insulation-proof and impenetrability.

The machine entails advanced consecutive rotation machine head,ensures smooth and homog-eneous products,meets the film’s quality requirement during the subsequent working procedure of the packing machine or the printer,also is usable for manufacturing the complex bead sheen film,complex hydro packing film,insulation film,multi functional farming film,ETC,its application range is gradually widening to the target of plastic product development.





主要技术参数:



型号

Moder

SJ-A4550/FM600-800

SJ-A5055/FM1000-1200

适用原料

Suitable Material

LDPEHDPELLDPEEVA

螺杆直径

Diameter of screw

Φ45   Φ50

Φ50   Φ55

螺杆长径比

Screw L/D Ratio

28:1

28:1

薄膜折径

Reduced diameter of film( mm)

600/800

1000/1200

薄膜单面厚度

Single-sided Thickness of film( mm)

0.015-0.10

0.015-0.10

产量

max output(kg/h)

40

65

主机功率

power of main motor( kw)

1115

1518.5

加热功率

Heating Power (kw)

26

30

外形尺寸

Outline Dimension(LXWXH)( mm)

4200×2200×5000

4600×2400×5500

机重

 Weight(T)

3

3.5
