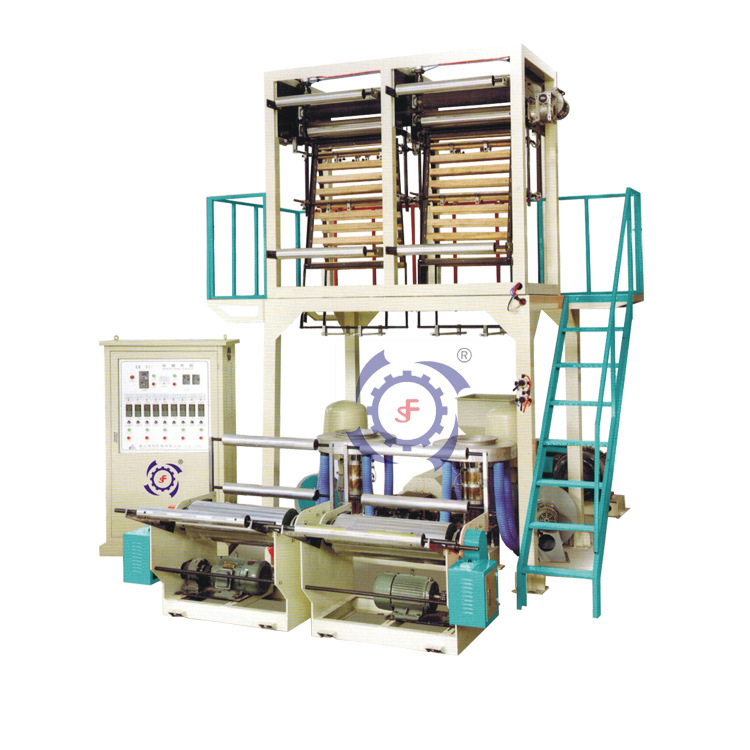

SJ-S Series Double Die Head Film Blowing Machine


65/FM600

70/FM700

75/FM800



SJ-S Series Double Die Head Film Blowing Machine

Performance and Characteristics

Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance,Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity,saving energy,labour and workshop area,etc.











Model

SJ-S65/FM600

SJ-S75/FM800

Diameter of screw

65mm

75mm

Screw L/D Ratio

281

281

Screw rod rotational speed

10-110r/min

10-110r/min

Max output

50kg/h

90kg/h

max reduced diameter of film(mm)

550mmX2

750mmX2

single-sided Thickness of film(mm)

0.006-0.10mm

0.006-0.10mm

Power of main motor(kw)

18.5-22kw

37kw

 Weight(T)

3000kg

4500kg

Outline Dimension(LXWXH)( mm)

4800X2200X3800MM

5200X2600X4200MM
